T055

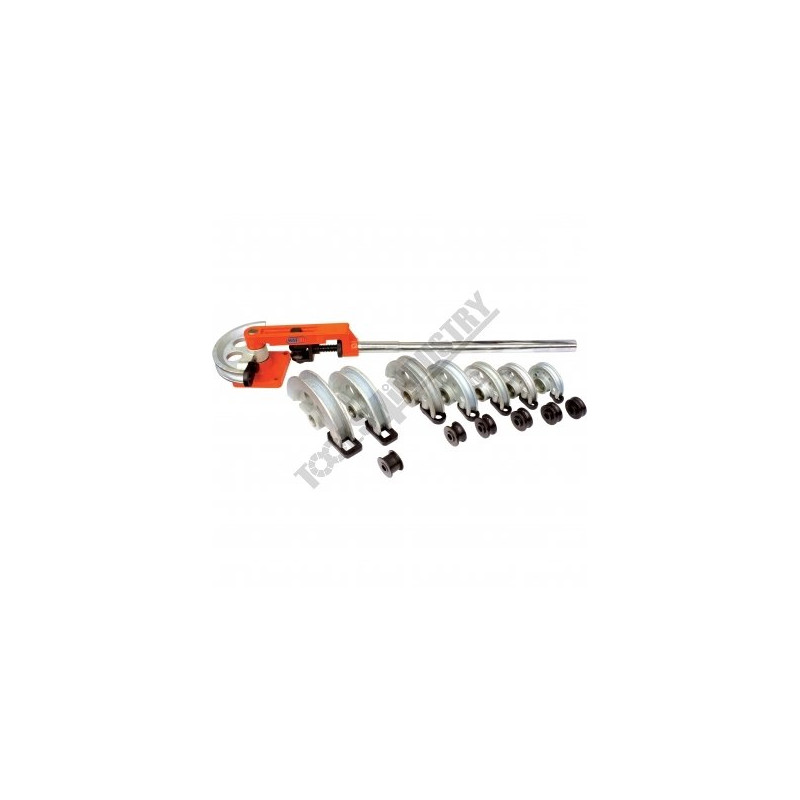

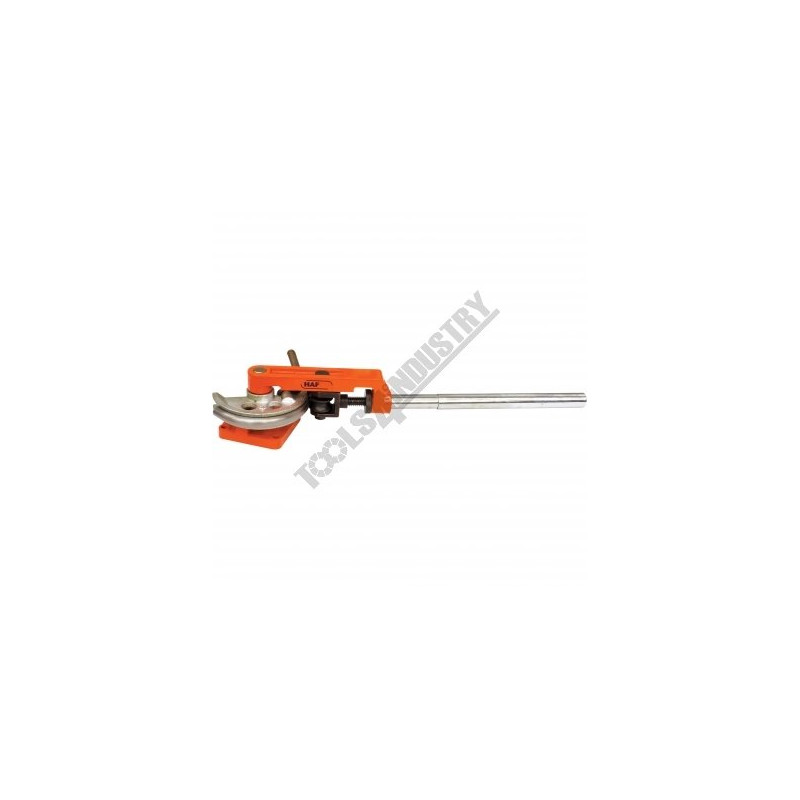

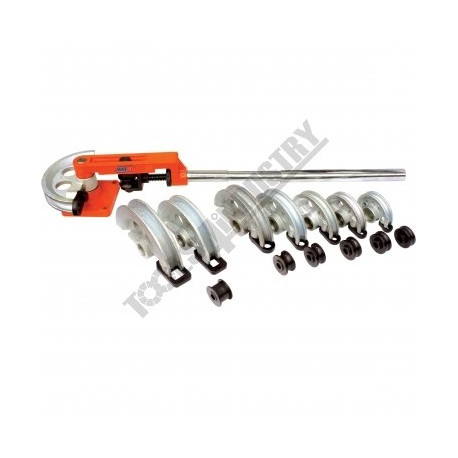

The TBRS-25 tube bending kit has everything that you need to make smooth bends in round & Square tubes up to 1.2mm maximum wall thickness. Firstly, mount the cast iron base securely onto your work bench top or clamp it into a bench vice, then you are ready to begin your bend.

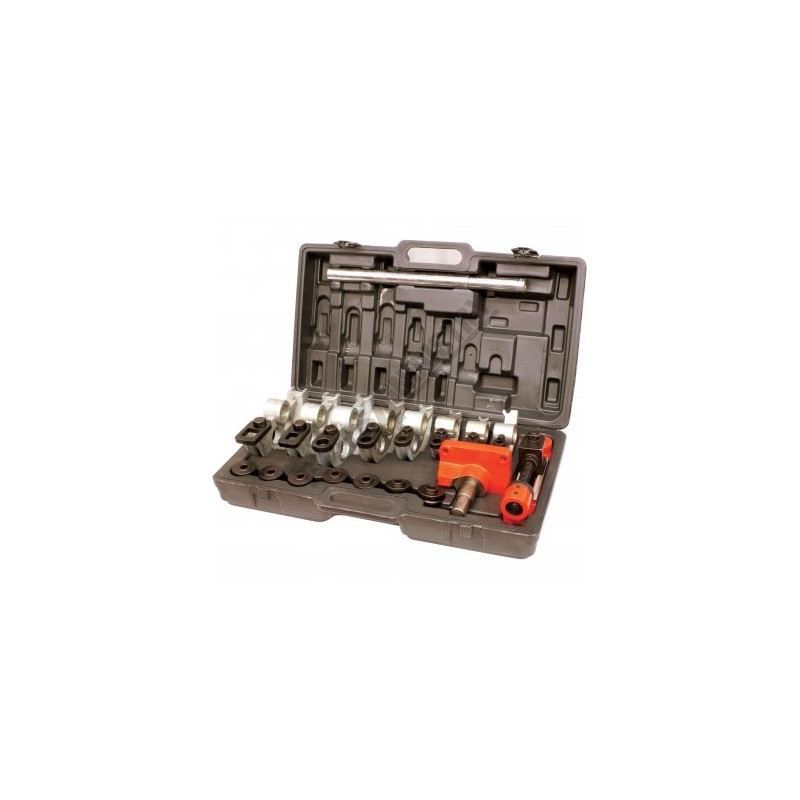

This great package is capable of bending round tubes from Ø9.52, Ø12.7, Ø14.29, Ø15.87, Ø19.05 & Ø22.22mm, and square tube from 19.05 & 25.4mm. Everything is all neatly packed into a handy storage carry case for your convenience,

Features

• Suitable for 1.2mm wall thickness in mild steel
• Cast Steel Round formers included: Ø9.52, Ø12.7, Ø14.29, Ø15.87, Ø19.05, Ø22.22mm
• Cast Steel Square formers included: 19.05 & 25.4mm

Includes

• • Cast Steel Round Tube Formers:
  • D = Ø9.52mm OD - R = 47.5mm Centreline radius
  • D = Ø12.7mm OD - R = 57.5mm Centreline radius
  • D = Ø14.29mm OD - R = 67.5mm Centreline radius
  • D = Ø15.87mm OD - R = 77.25mm Centreline radius
  • D = Ø19.05mm OD - R = 88.25mm Centreline radius
  • D = Ø22.22mm OD - R = 107.25mm Centreline radius

• Cast Steel Square Tube Formers:
• H = Ø19.05mm OD - L = 85mm Internal radius
• H = Ø25.4mm OD - L = 92.5mm Internal radius
